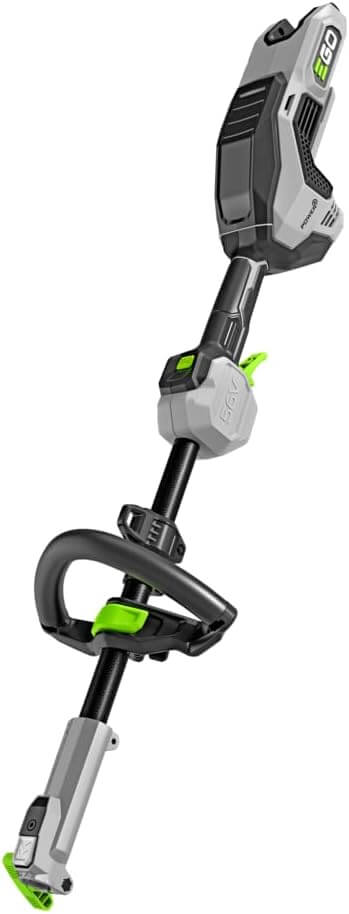

EGO PH1420 Power Head Review

The EGO PH1420 is the latest-generation 56V POWER+ Multi-Head power head, designed to be the central motor unit of EGO’s interchangeable attachment system. Instead of owning multiple separate tools, this single power head drives a wide range of landscaping attachments — turning one machine into many.

Features

Specifications

Specification	Details
Model	PH1420 Power+ Multi-Head Power Head
Voltage	56 V ARC Lithium™ battery system
Battery Port	Single port
Motor Type	High-efficiency brushless
Rotating Direction	Counterclockwise
Speed Control	Digital two-speed selector + variable trigger
Drive Tube Material	Carbon fiber (lifetime shaft warranty when registered)
Shaft Material	7 mm solid steel
Coupling Mechanism	Tool-free quick change
Weather Resistance	IPX4 splash-resistant
Adjustable Handle	Quick-release adjustable handle + shoulder strap included
Safety Features	Lock-off safety + variable trigger
Battery Compatibility	All EGO 56 V ARC Lithium™ batteries
Attachment Compatibility	All EGO POWER+ Multi-Head System attachments
Weight (Tool Only)	~6.1 lbs (≈2.8 kg)
Warranty	5-year limited tool warranty + lifetime shaft warranty (registered)

Build Quality & Design

The EGO PH1420 is engineered with a strong focus on durability while keeping the tool lightweight and comfortable for extended use. One of its standout design elements is the carbon fiber shaft, which provides excellent strength while reducing overall weight compared to traditional metal tubes. This shaft is backed by a lifetime warranty, showing EGO’s confidence in its long-term durability and resistance to corrosion, bending, and outdoor wear.

Internally, the power head uses a 7 mm solid steel drive shaft, ensuring efficient and consistent power transfer from the motor to any attachment. Combined with an IPX4 weather-resistant housing, the tool is built to handle real outdoor working conditions such as moisture, dust, and daily landscaping use. The quick-release adjustable handle and included shoulder strap also improve balance and ergonomics, helping reduce fatigue during longer jobs while maintaining precise control.

High-Efficiency Brushless Motor

The EGO PH1420 is powered by a high-efficiency brushless motor, designed to deliver strong and consistent performance while improving overall durability. Unlike traditional brushed motors, this system reduces internal friction and heat buildup, allowing the tool to run smoother and more efficiently. As a result, users benefit from longer runtime, reduced vibration, and extended motor life, making the power head more reliable for regular landscaping work.

In real-world use, the brushless motor automatically adjusts power output depending on the attachment and workload, providing efficient energy use without wasting battery power. This smarter power management not only improves cutting performance but also helps maintain steady torque when working in thicker grass or heavier applications. The smoother operation also contributes to better comfort and control, especially during longer sessions where reduced vibration makes a noticeable difference.

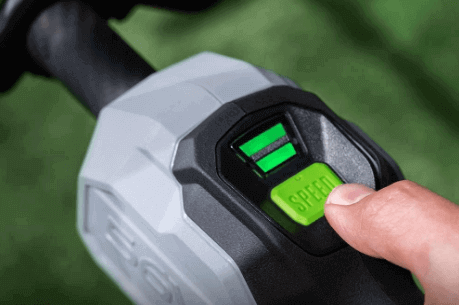

Digital Two-Speed Selector for Maximum Control

The EGO PH1420 features a digital two-speed selector that allows you to switch easily between low and high speed modes. Low speed is perfect for lighter tasks such as trimming grass or delicate plants, while high speed delivers maximum power for tougher jobs like cutting thick vegetation or using heavy-duty attachments. This digital selector provides a clear visual indicator of the chosen speed, ensuring you always know the tool’s current setting.

In addition to the two-speed selector, the power head also includes a variable-speed trigger, giving precise control over the tool’s output. By squeezing the trigger gradually, you can fine-tune the power delivered to each attachment. This combination of digital two-speed selection and variable trigger allows users to match performance to the task, conserve battery life when full power isn’t needed, and maintain full control for safety and precision.

Lock off safety Feature

The lock-off safety feature on the EGO PH1420 is designed to prevent accidental startup and improve overall operator safety. Before the tool can run, the user must first press the lock-off lever with the thumb and then squeeze the variable-speed trigger at the same time. The motor will not start unless both actions are performed together, which helps stop unintended activation if the trigger is bumped or pressed accidentally.

In real use, this safety system is especially important when carrying, adjusting, or attaching tools, because it ensures the power head cannot activate unintentionally. The lock-off lever acts as a protective barrier against unauthorized or accidental operation, adding an extra layer of control when working around people, obstacles, or during transport. This two-step start process is a standard safety design in EGO tools and helps reduce the risk of injury while maintaining quick and easy operation once you are ready to work.

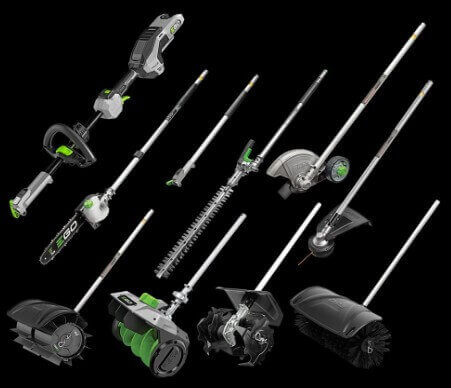

Compatible with EGO All Attachments

The EGO PH1420 is fully to work with the entire EGO POWER+ Multi-Head attachment system, making it one of the most versatile cordless power heads available. It connects to a wide range of attachments including the string trimmer, edger, pole saw, hedge trimmer, brush cutter, cultivator, rubber broom, bristle brush, snow shovel, and extension pole. All attachments are built specifically for EGO multi-head power units, allowing quick tool-free swapping so one motor can handle nearly every yard task.

This broad compatibility is what makes the PH1420 especially practical for homeowners building a complete EGO system. Instead of buying separate machines, you simply add attachments over time while keeping the same power head and batteries. Newer attachments even take advantage of upgraded features unique to the PH1420 — such as POWERLOAD™ support on certain trimmer heads — while still maintaining compatibility with standard multi-head tools, ensuring long-term flexibility and future expansion within the EGO ecosystem.

Comfort and Ergonomic Design

The EGO PH1420 is engineered with user comfort in mind, making it ideal for extended yard work sessions. It features an adjustable front handle that can be repositioned along the shaft, allowing users to customize grip placement depending on the attachment being used. The ergonomic rear handle includes a textured overmold grip that enhances control while reducing hand fatigue during long trimming or edging jobs.

Weighing approximately 6.1 lbs (2.8 kg) without the battery or attachment, the PH1420 remains lightweight yet solid thanks to its durable carbon fiber shaft. This balanced construction minimizes arm and shoulder strain, while the included shoulder strap helps distribute weight evenly across the body. Combined with a variable-speed trigger for smooth power control, the tool offers a stable, comfortable, and fatigue-reducing experience even during demanding outdoor tasks.

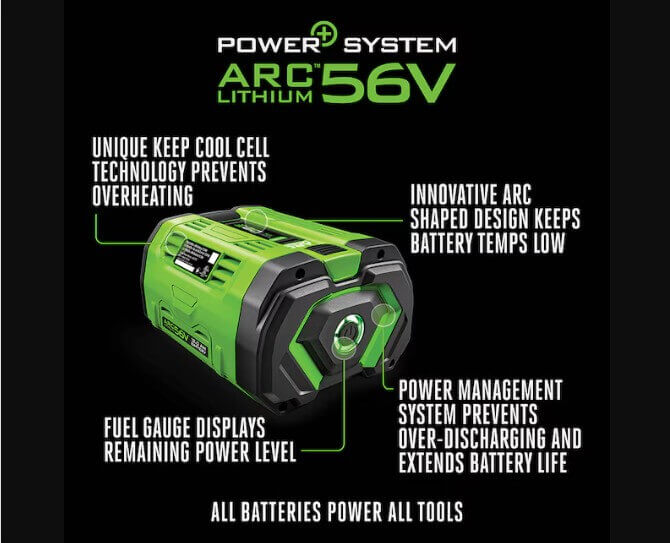

Compatible with all EGO 56V Batteries

The EGO PH1420 is designed to work with all EGO 56V ARC Lithium™ batteries, making it fully compatible with the entire EGO cordless ecosystem. This means you can use any genuine EGO 56V battery pack — whether small or high-capacity — without adapters or modifications. The tool is commonly paired with batteries ranging from 2.5Ah up to 10.0Ah and higher, allowing users to choose between lighter weight or longer runtime depending on the job.

This universal compatibility is especially useful if you already own other EGO tools, since one battery can power multiple machines across the lineup. Larger capacity batteries provide extended runtime for demanding attachments like pole saws or cultivators, while smaller batteries keep the tool lighter for trimming and edging tasks. The PH1420 is sold as a tool-only unit, so batteries and chargers are purchased separately but remain interchangeable across all EGO 56V POWER+ equipment.

Value for Money

The EGO PH1420 offers very strong value for money if you plan to use multiple yard tools instead of buying separate machines. One power head can run many attachments — trimmer, edger, pole saw, hedge trimmer, cultivator, and more — which means you invest once in the motor and expand later as needed. Its brushless motor, carbon-fiber shaft with lifetime warranty, and 5-year tool warranty add long-term durability, making it feel closer to professional equipment than typical cordless tools.

However, the value really depends on how you use it. If you only need one tool, a dedicated standalone machine may feel lighter and sometimes cheaper overall because the PH1420 requires buying attachments separately. But for homeowners already using EGO batteries or building a full yard system, the flexibility, storage savings, and solid performance make the PH1420 a smart long-term investment that becomes more cost-effective as you add attachments over time.

EGO PH1420 Vs PH1400

Final thought

Overall, the PH1420 is a smart long-term investment for homeowners or users who want a single platform capable of growing with their needs. While the real value increases as you add more attachments, its reliability, performance, and expandability make it one of the most well-rounded and future-proof options in the cordless multi-head category.
